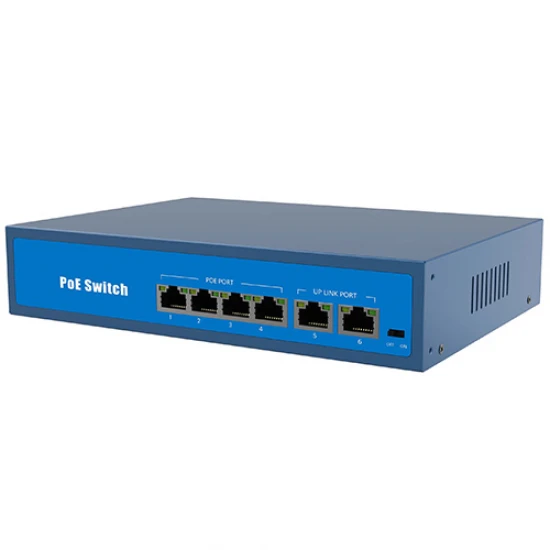

FS-1006AI - 4PoE + 2 Uplink порта 10/100mbps PoE суич 250 метра Uplink VLAN

Четири портов PoE суич с два уплинк порта, разширен пренос до 250 метра и поддръжка на VLAN

4*10/100mbps POE port,2*10/100mbps UP Link port

100m Distance

Support IEEE802.3AF/AT

Whole Power:78W(52V 1.5A)

All port supported by MDI/MDIX auto flip and self negotiation

Supply 4 10/100Mpbs adaptive high speed forwarding data packet non-lost port.

Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.

Each port max. power supply reached 30W.

Application:

Wireless Access Point

IP Camera

IP Phone

Computer Networks

POE Port1 to 4 support IEEE802.3AF/AT Standard

Output Power15.4W/30W    IEEE802.3af/at

Power PinBoth 1/2+、3/6- and 4/5+7/8-

Whole Power≤78W (52V 1.5A)

POE ProtocolIEEE 802.3af/IEEE 802.3at

POE TypeEnd-span

Power Distance≤150m

Network StandardIEEE 802.3、 IEEE802.3u、802.3x、802.3af/at

Network Medium10/100BASE-TX:5 class and above non shielded twisted pair

Data Distance≤150m

Switch Capability1Gbps

Forwarding ModeStore and forward

Forwarding Rate10BASE-T:14880PPS/port

100BASE-tx：14800pps/port

MAC AddressMAC address table 1K

Port FunctionPower priority mechanism, fast and forward, MAC automatic learning and aging

IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode

LED IndicatorEach port occupied 1 LINK/ACT.100Mbps,

POE Status Indicator, Whole power indicator

Working EnvironmentWorking temperature：-10°-- 55°C

Weight1kg

Size200×145×44(L*W*H)mm
